Cryo Ethanol Extraction: Level 3

Eliminate the need for additional processing and increased cycle time using Cryo Ethanol.

Technical Specifications

Level 3
Capacity per batch (kg/batch) 50
Batch time (minutes) 20-30
Processing capacity per shift - 8 hours (kg) 1200
Ethanol recovery rate (Litre/hr) 2000
Maximum Centrifugal Extractor RPM 2000
Solvent temperature (°C) -35 to -45
Material of Construction Contact Parts - SS316, Non-contact Parts - SS304
Certifications Options CE / USFDA 21CFR / EUGMP Annex 11 / ATEX / UL

System Features

01

Closed loop system For recirculation of ethanol for continuous operation.

02

Efficient solvent recovery system Under vacuum to protect oils from thermal degradation.

03

GMP-compliant Construction as per US-FDA and EU-GMP.

04

Robust and consistent Temperature control for extraction.

05

SCADA system For recipe management and data logging for analytics.

06

Single pass and multi pass Filtration system to achieve desired product clarity.

Cryogenic Ethanol technology has taken the extraction world by storm since 2019! Also called Cold Ethanol Extraction, the technology cuts down process time from days to hours and delivers a pristine, full-spectrum product. The process is scalable, safe, and can be standardized.

Loaded with compounds from nearly every biogenetic class, Cannabis is a fascinating plant with versatile healing properties. Full spectrum cannabis oil contains multiple molecules which produce the synergic “entourage effect,” surpassing the isolated impact of different compounds.

Cryogenic Ethanol Extraction draws out:

  • Cannabinoids: CBD, THC, CBC, CBG, CBDV.
  • Terpenes: Myrcene, Limonene, Pinene, Linalool, b-caryophyllene, Terpinene, and Eucalyptol.
  • Flavonoids: Apigenin, Luteolin, Kaempferol, Wuercetin, and Cannflavin A and B.
  • Amino Acids: All eight essentials.
  • Polyphenols.
  • Lignans.
  • Chlorophyll.
  • Alkamides.

With customers demanding pure ingredients in products and regulators mandating the same, Cryogenic Ethanol Extraction is at the top of every producer's mind. Technical upgrades will further reinforce the trend.

Ethanol (solvent) is chilled to - 40 degree Celsius. At such low temperatures, it is called Cryogenic Ethanol or Cryo Ethanol.
Dried and finely milled biomass (Cannabis) is loaded in the Centrifugal Extractor.
Cryo Ethanol is introduced in the extractor to extract the required compounds from the Cannabis biomass.
Centrifugal force is applied to the extractor to separate the Cryo Ethanol containing dissolved molecules from the residual solid biomass.
Mixture from the evaporator is filtered to remove solid impurities from Ethanol.
Ethanol is evaporated. This leaves behind pure Cannabis extract (oil).

Benefits

Total Solution

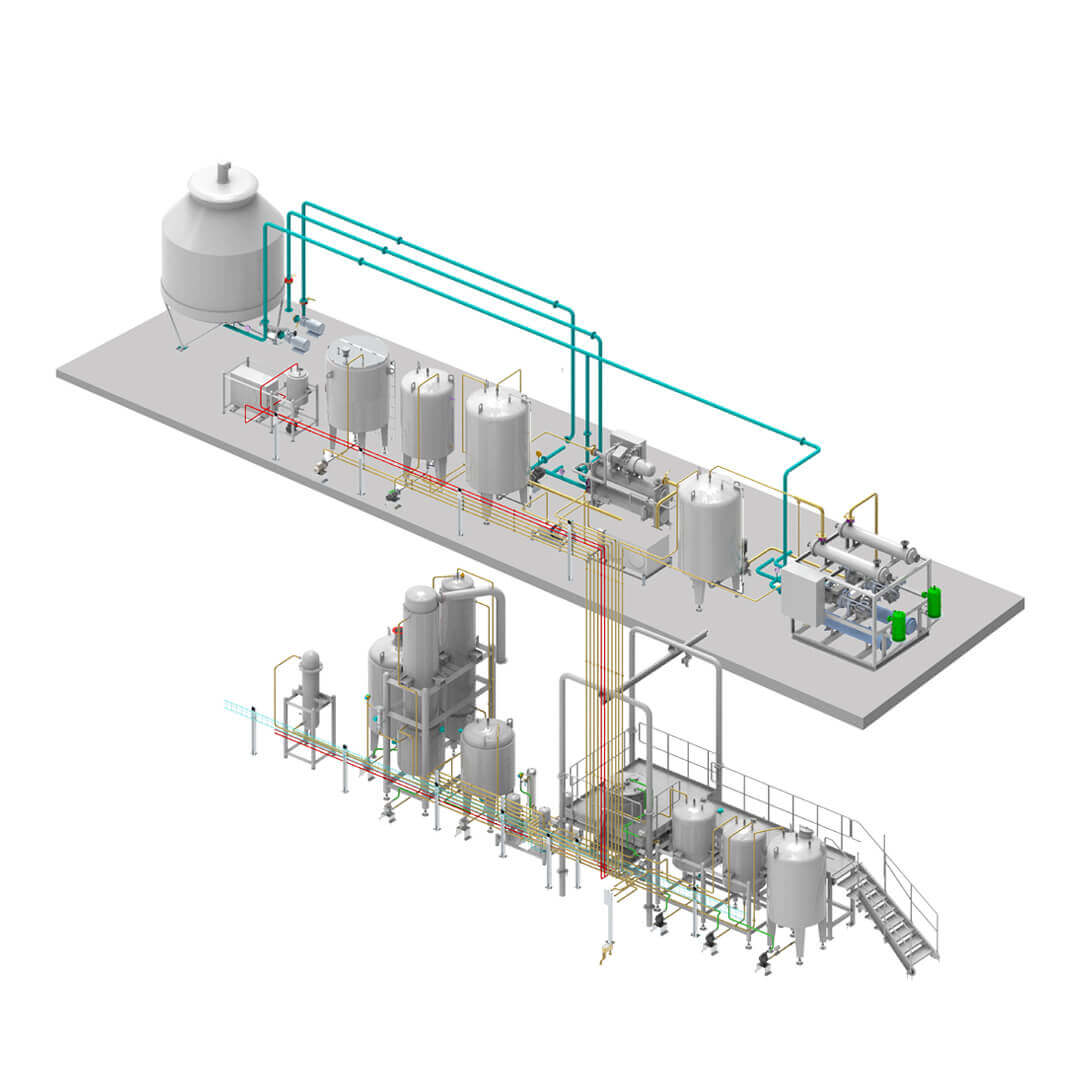

Skidded, scalable system for automated solvent cooling and recovery, extraction, de-solventization, filtration, and decarboxylation.

Pure Extraction

98% ethanol recovery at 350 lit/hr.

High-capacity, Continuous Operation

Automation for reliable functioning.

Food-grade Construction

Hygienic, SS316 L built.

Precise Chilling

Controlled cooling optimizes operational range.

Energy Efficiency

Heat recovery minimizes utility expenses.

Expert Training & Service

On-site, complete training and rapid resolution of service-maintenance queries, if any.

Intuitive Intelligence

Proprietary Tablet APP enables recipe-based control and remote monitoring-maintenance.
