Buffalo Extraction Systems' Cryogenic Ethanol Extraction System cuts down process time from days to hours and delivers a pristine, full-spectrum product. Our systems have integrated intelligence which enable optimizing recipes based on the harvest, and eliminate extra processes such as winterization, giving you a better return on your investment.

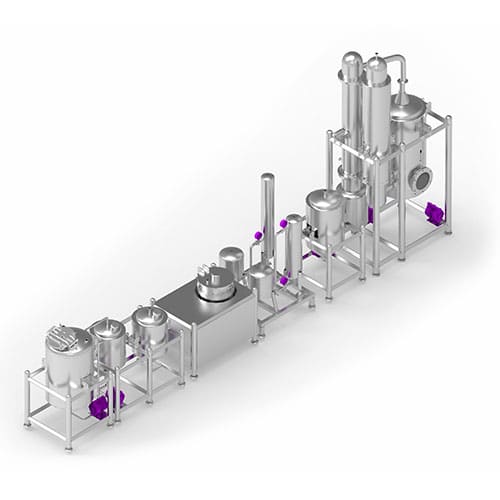

| Level 1 | |
|---|---|
| Capacity per batch (kg/batch) | 5 |
| Batch time (minutes) | 20-30 |
| Processing capacity per shift - 8 hours (kg) | 120 |
| Ethanol recovery rate (Litre/hr) | 200 |
| Maximum Centrifugal Extractor RPM | 2000 |
| Solvent temperature (°C) | -35 to -45 |
| Material of Construction | Contact Parts - SS316, Non-contact Parts - SS304 |
| Certifications Options | CE / USFDA 21CFR / EUGMP Annex 11 / ATEX / UL |
Closed loop system For recirculation of ethanol for continuous operation.
Efficient solvent recovery system Under vacuum to protect oils from thermal degradation.
GMP-compliant Construction as per US-FDA and EU-GMP.
Robust and consistent Temperature control for extraction.

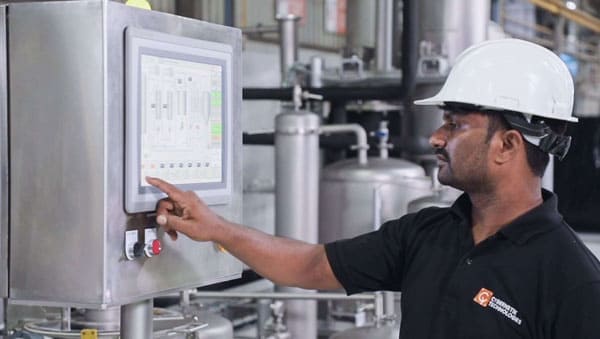

SCADA system For recipe management and data logging for analytics.
Single pass and multi pass Filtration system to achieve desired product clarity.
Cryogenic Ethanol technology has taken the extraction world by storm since 2019! Also called Cold Ethanol Extraction, the technology cuts down process time from days to hours and delivers a pristine, full-spectrum product. The process is scalable, safe, and can be standardized.
Loaded with compounds from nearly every biogenetic class, Cannabis is a fascinating plant with versatile healing properties. Full spectrum cannabis oil contains multiple molecules which produce the synergic “entourage effect,” surpassing the isolated impact of different compounds.
Cryogenic Ethanol Extraction draws out:
With customers demanding pure ingredients in products and regulators mandating the same, Cryogenic Ethanol Extraction is at the top of every producer's mind. Technical upgrades will further reinforce the trend.

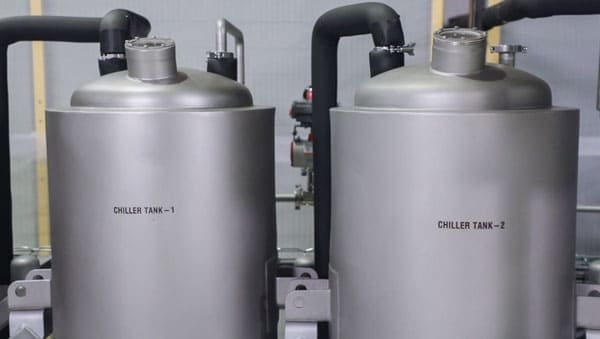

Ethanol (solvent) is chilled to - 40 degree Celsius. At such
low temperatures, it is called Cryogenic Ethanol or Cryo
Ethanol.
Dried and finely milled biomass (Cannabis) is loaded in the
Centrifugal Extractor.
Cryo Ethanol is introduced in the extractor to extract the
required compounds from the Cannabis biomass.
Centrifugal force is applied to the extractor to separate the
Cryo Ethanol containing dissolved molecules from the residual
solid biomass.

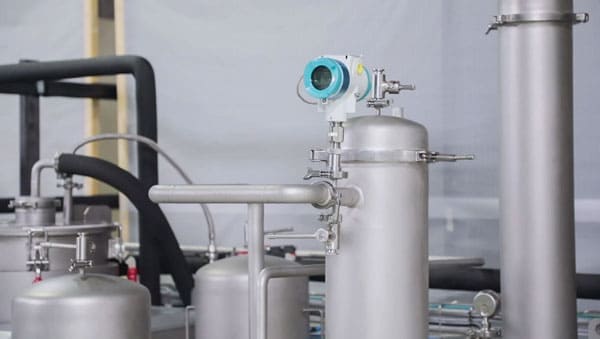

Mixture from the evaporator is filtered to remove solid
impurities from Ethanol.

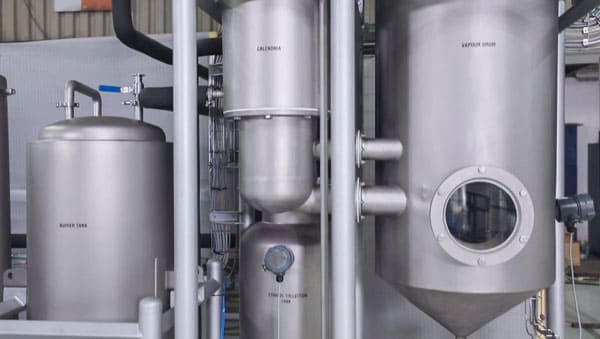

Ethanol is evaporated. This leaves behind pure Cannabis
extract (oil).

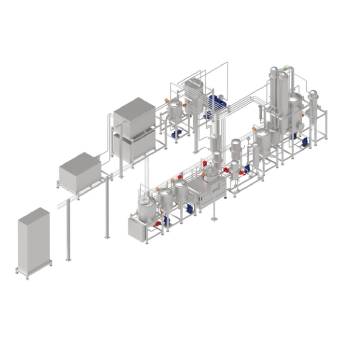

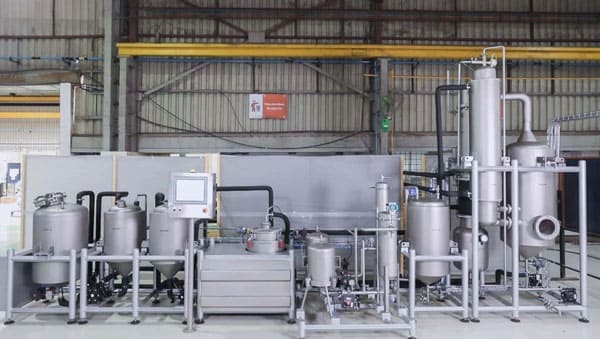

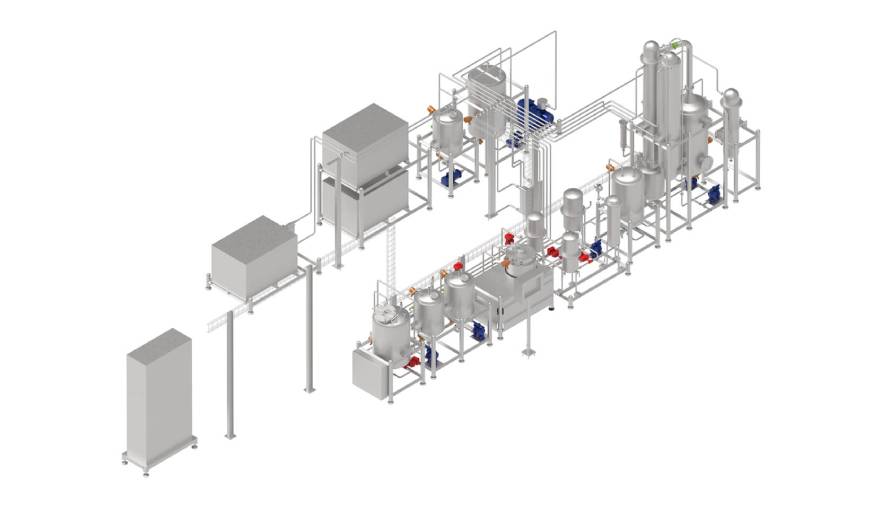

Skidded, scalable system for automated solvent cooling and recovery, extraction, de-solventization, filtration, and decarboxylation.
98% ethanol recovery at 350 lit/hr.
Automation for reliable functioning.
Hygienic, SS316 L built.
Controlled cooling optimizes operational range.
Heat recovery minimizes utility expenses.
On-site, complete training and rapid resolution of service-maintenance queries, if any.

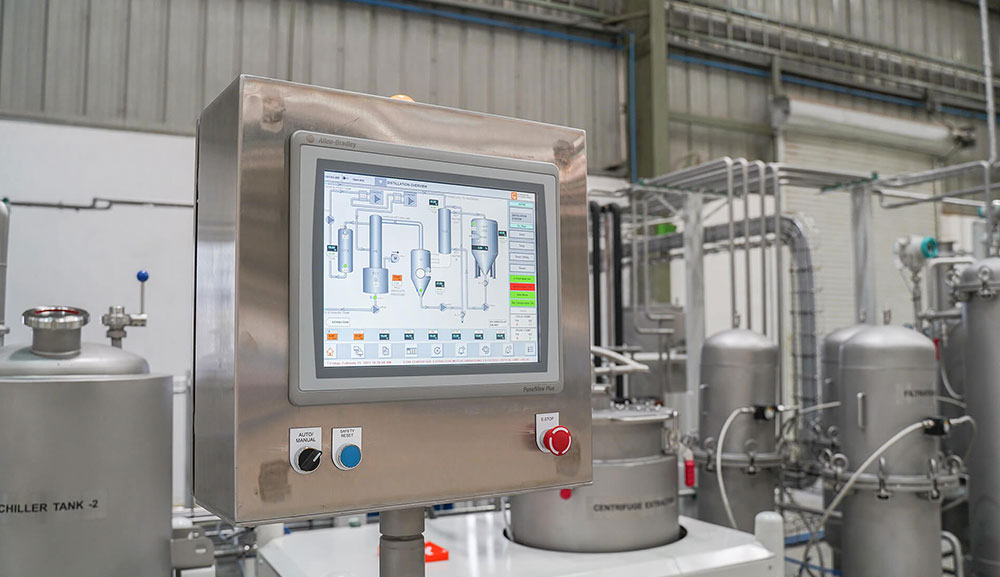

SCADA enabled recipe-based control as well as remote monitoring and maintenance..
