Supercritical Fluid Extraction (SCFE) of Bioproducts for Research & Development

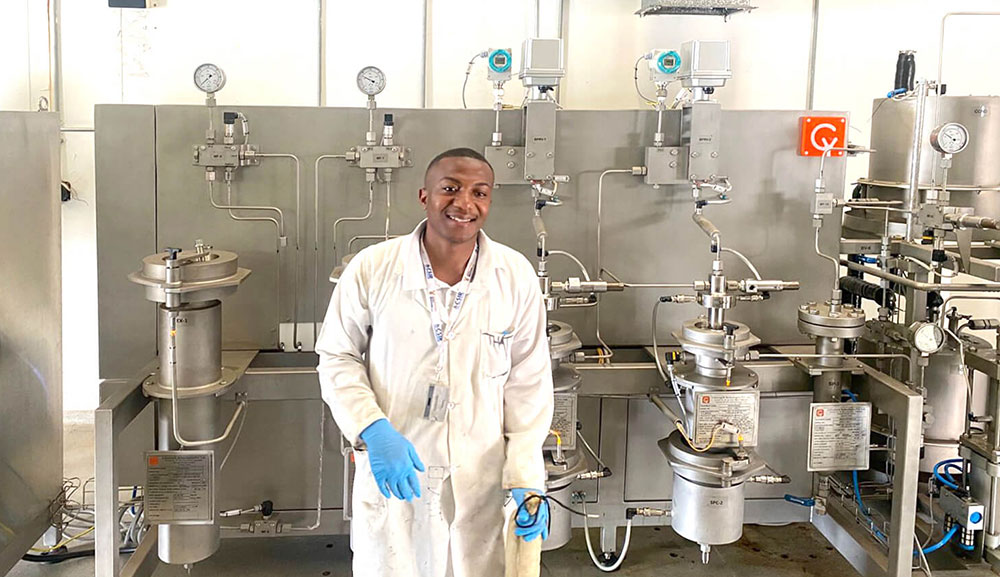

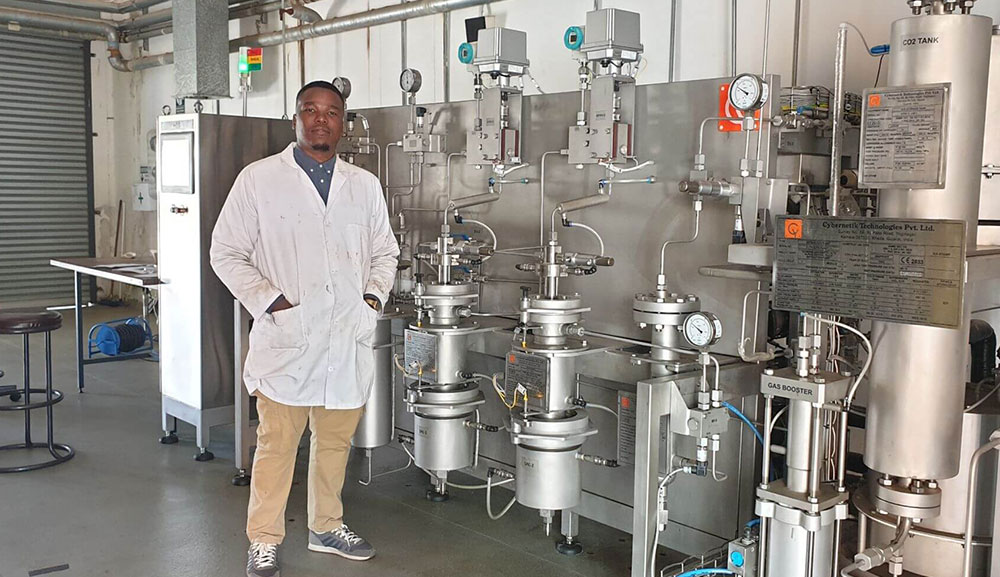

Supercritical Fluid Extraction (SCFE) of bioproducts for research & development via CE & PED Certified, 2 x 5L carbon dioxide SCFE system

Brief :

Laboratory grade SCFE system to extract various products in their purest possible form from different raw materials.

Industry :

Pharmaceuticals, Chemicals, Food

Schedule :

6 months

Customer Requirements :

• Pilot scale plant for research and testing purposes.
• Pure extraction of target products (molecules) from multiple raw materials.
• Eco-friendly solution.
• Integrated sanitization / cleaning system.
• Operational safety.
• User friendly interface.

Buffalo Extraction Systems' Solution :

• CE & PED Certified system with 2 x 5 L capacity and 350 bar peak pressure.
• ASME & GMP compliances.
• Pure and efficient extraction with pressure and flow control.
• Unique Separator built for easy product collection.

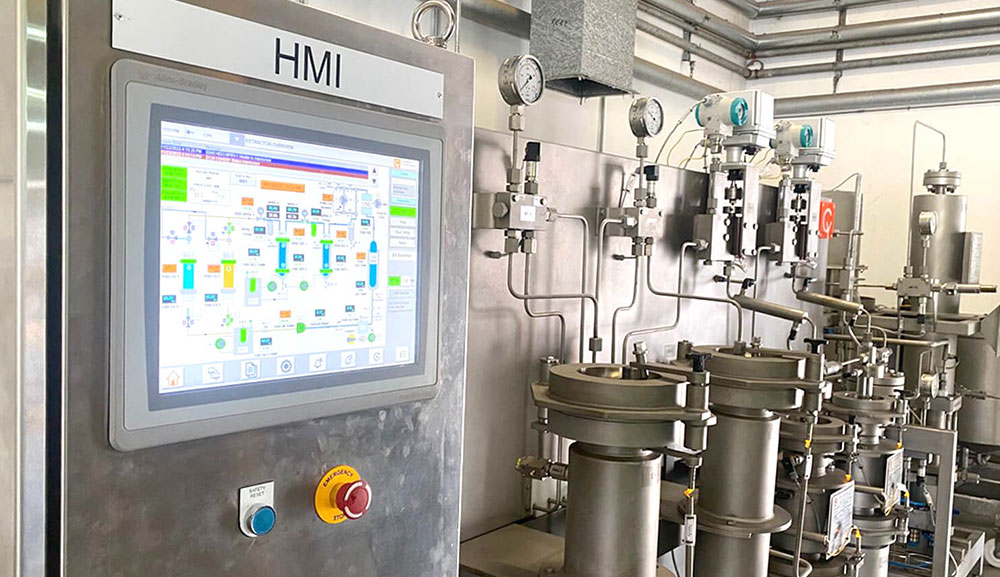

• Intuitive HMI.

Scope :

• 2 x Extractors (5L each)
• 2 x Separators
• 1 x Gas Booster
• 1 x Water Separator
• 1 x Super Chiller
• 1 x Super Heater
• 1 x Condenser
• 1 x Condenser Unit
• 1 x CO₂ Storage
• 2 x BPRV
• 2 x Superheaters
• High Pressure Pump
• Pneumatically Actuated Valves
