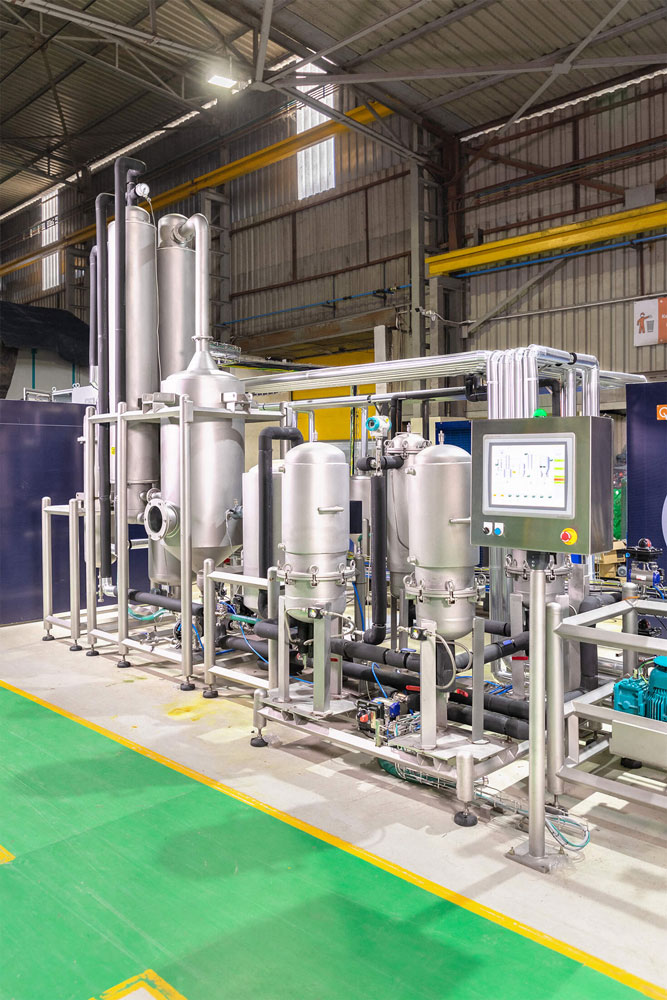

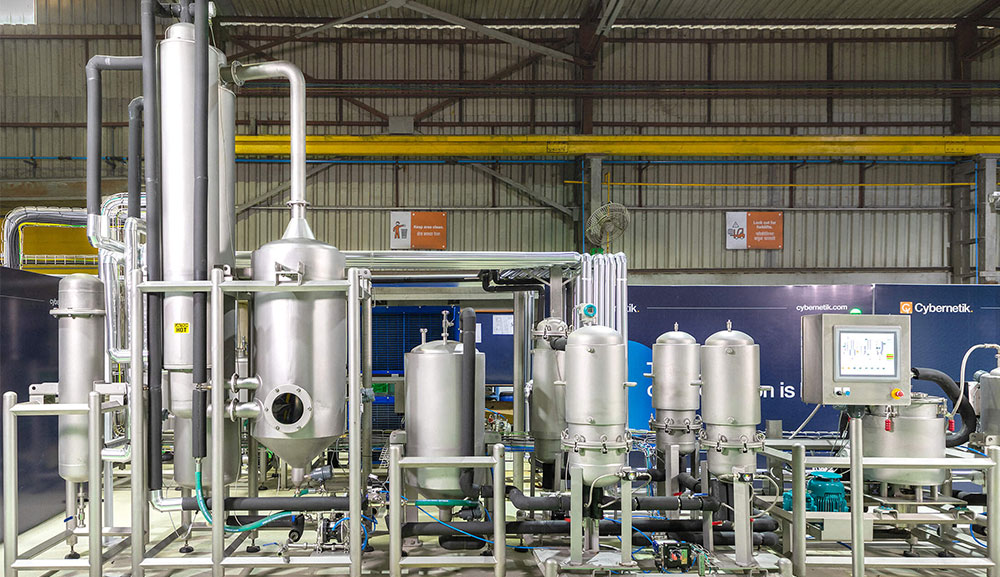

5 kg Cryo Ethanol Plant for CBD Extraction

Cryo Ethanol Plant for CBD extraction from cannabis via cryogenic ethanol at -40°C.

Brief :

A cryogenic system capable of extracting pure cannabidiol (CBD) from cannabis. The purer the extracted CBD is, the more effective it is in countering pain, anxiety, depression, migraine, inflammation, and mental illness.

Industry :

Pharmaceuticals, Food

Schedule :

6 months

Customer Requirements :

• Pristine cannabidiol (CBD) oil.
• Minimal batch time.
• Minimal post extraction processing.
• Easy loading-unloading in Extractor.
• Operational safety.
• User friendly interface.

Buffalo Extraction Systems' Solution :

• CE Certified and ATEX compliant system.
• Pure and efficient extraction.
• Intuitive HMI.

Scope :

• 1 x Solvent Storage Tank
• 1 x Chiller Unit
• 1 x Centrifuge Extractor (5 kg)
• 1 x Filtration Unit
• 1 x Buffer Tank
• 1 x Distillation Unit
• 1 x Trap Tank Assembly
• Condenser Units
• 1 x Heating Skid
• 1 x Vacuum Pump Assembly
• 1 x Decarboxylation Unit
• 1 x Control Panel
• Valve & Pump Assemblies
